Automation

Multi-track piecewise-linear CV. Each track plays a polyline that ramps between keypoints over the inferred clock period.

Category: Control

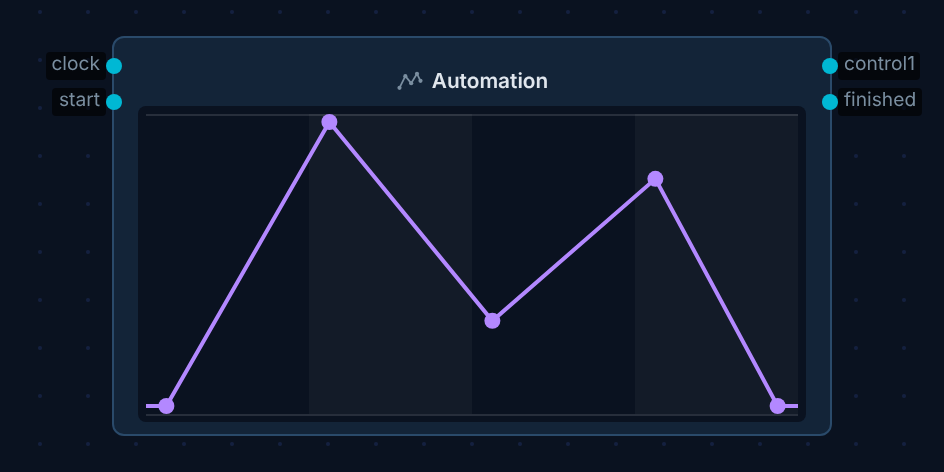

Dynamic shape. Ports and per-channel parameters scale with the channel-count parameter; the default 2-channel shape is shown below.

Inputs

Name	Type	Description
clock	control	Advances to the next step on each rising edge. Ramp duration is inferred from the clock period.
start	control	Rising edge resets to step 0 and starts playback. When unconnected, the curve free-runs.

Outputs

Name	Type	Description
control1	control	Track 1’s CV signal (linear ramps between keypoints).
finished	control	Pulse when the curve completes its last step.

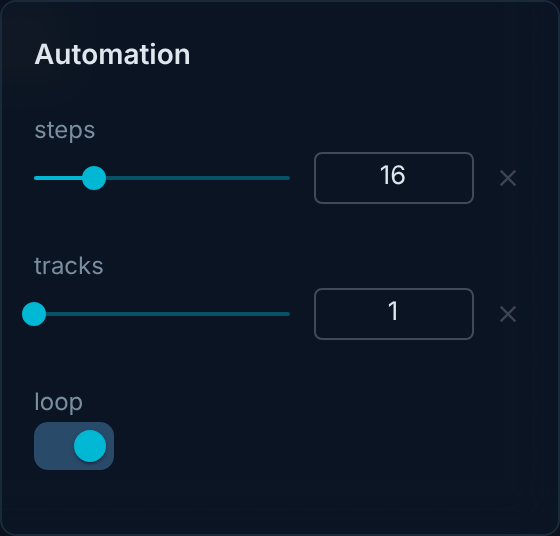

Parameters

Name	Type	Default	Range	Unit	Description
steps	number	16	1–64	—	Number of steps in the timeline.
tracks	number	1	1–8	—	Number of independent track outputs. Changing this rebuilds the patch.
loop	boolean	true	true, false	—	When true, the curve wraps; when false, it holds the final value after the last step.
curves	string	—	—	—	Pipe-separated track definitions; each track is comma-separated `step:value` keypoints (value clamped to 0–1).
