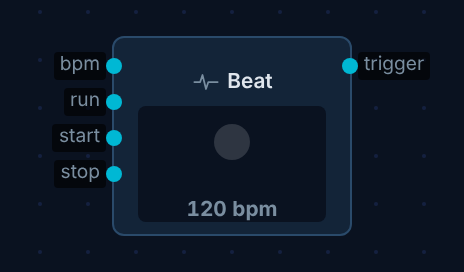

Tempo clock. Emits a trigger pulse on each beat at the configured BPM.
Category: Control
| Name | Type | Description |
|---|
| bpm | control | Tempo CV. Adds to the `bpm` parameter. |
| run | control | Gate. High = running, low = stopped. When unconnected the clock is free-running. |
| start | control | Rising edge resets the next beat to now and starts the clock. |
| stop | control | Rising edge halts the clock. |
Outputs
| Name | Type | Description |
|---|
| trigger | control | One pulse per beat. |
Parameters
| Name | Type | Default | Range | Unit | Description |
|---|
| bpm | number | 120 | 1–960 | bpm | Beats per minute. |
