Keyboard

On-screen piano keyboard. Outputs pitch (1V/octave), a per-press trigger, and a gate while a key is held.

Category: Input

Inputs

(none)

Outputs

Name	Type	Description
note	control	Current key’s pitch (1V/octave).
trigger	control	Pulse on each key press.
gate	control	High while a key is held; low when all released.

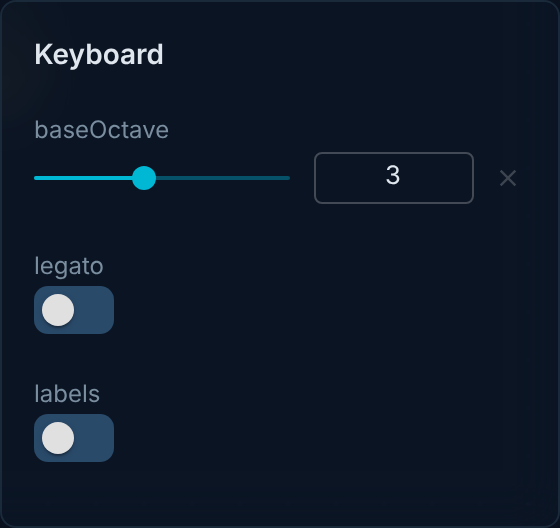

Parameters

Name	Type	Default	Range	Unit	Description
baseOctave	number	3	0–7	—	Octave of the leftmost (lowest) visible key.
legato	boolean	false	true, false	—	When on, holding a new key while another is down keeps the gate high (no retrigger).
labels	boolean	false	true, false	—	Show note names on the keys.
