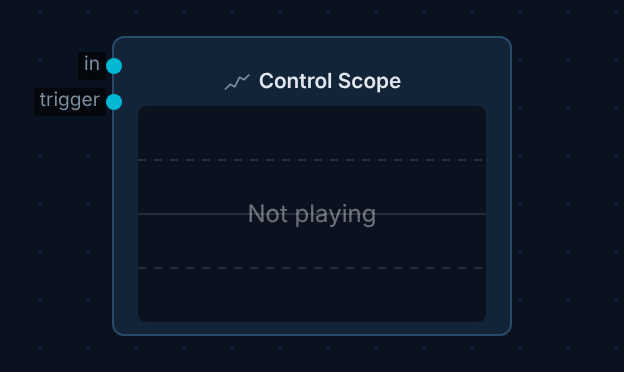

Control Scope
Slow-rate scope for control signals — plots up to a minute of history. Use to watch envelopes, LFOs, and S&H sources.
Category: Monitoring
Inputs
| Name | Type | Description |
|---|---|---|
| in | control | Control signal to display. |
| trigger | control | External trigger source — rising edge aligns the display. |
Outputs
(none)

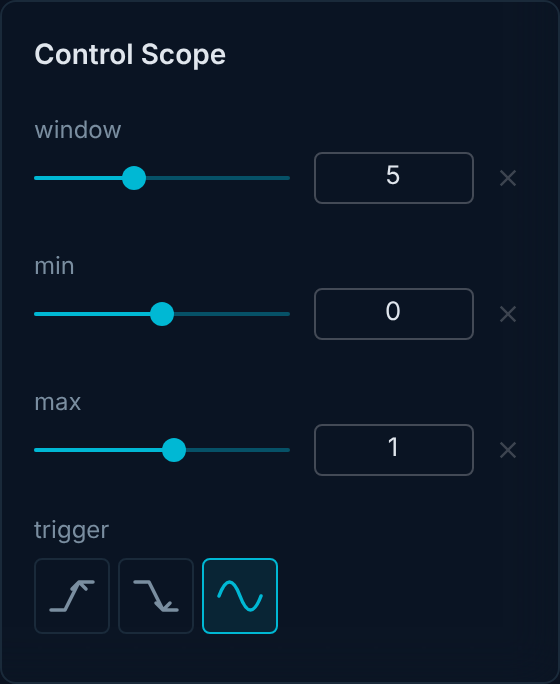

Parameters
| Name | Type | Default | Range | Unit | Description |
|---|---|---|---|---|---|
| window | number | 5 | 1–60 (log) | s | Display window length in seconds. |
| min | number | 0 | -1000–1000 (log) | — | Minimum value of the vertical display range. |
| max | number | 1 | -1000–1000 (log) | — | Maximum value of the vertical display range. |
| trigger | enum | rising | rising, falling, free | — | Trigger mode (free = no sync, just continuous scroll). |
