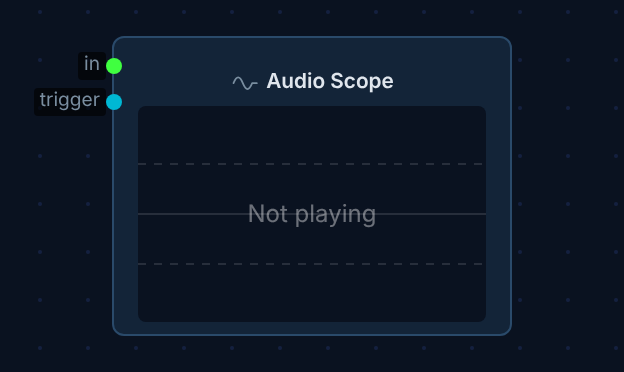

Audio Scope

Audio-rate oscilloscope. Triggers on rising/falling edges of the input or an external trigger; visual only.

Category: Monitoring

Inputs

Name	Type	Description
in	audio	Audio signal to display.
trigger	control	External trigger source — rising edge aligns the displayed waveform.

Outputs

(none)

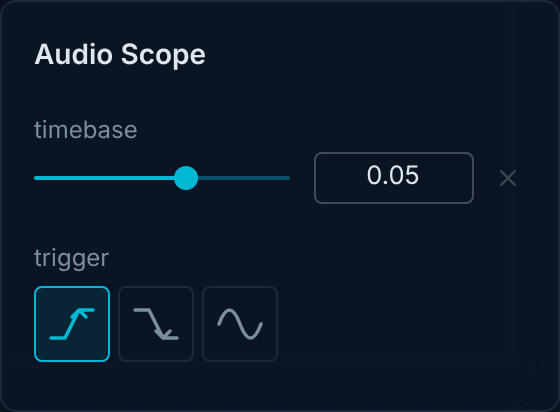

Parameters

Name	Type	Default	Range	Unit	Description
timebase	number	0.05	0.001–0.75 (log)	s	Display window length in seconds.
trigger	enum	rising	rising, falling, free	—	Trigger mode for input-driven sync (free = no sync; useful for noisy signals).
