Random

Random-voltage source. Emits a new value on each trigger and/or at a free-running rate; held between samples.

Category: Control

Inputs

Name	Type	Description
trigger	control	Rising edge generates a new random sample.
min	control	Lower-bound CV. Adds to the `min` parameter.
max	control	Upper-bound CV. Adds to the `max` parameter.
rate	control	Free-run rate CV in Hz. Adds to the `rate` parameter.

Outputs

Name	Type	Description
out	control	Last random sample, held until the next sample.

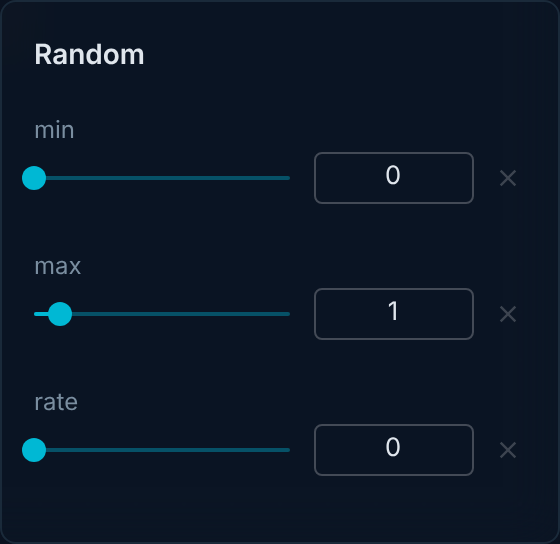

Parameters

Name	Type	Default	Range	Unit	Description
min	number	0	0–1000 (log)	—	Lower bound of generated values.
max	number	1	0–1000 (log)	—	Upper bound of generated values.
rate	number	0	0–100	Hz	Free-run sample rate in Hz. Set to 0 to require external triggers.
