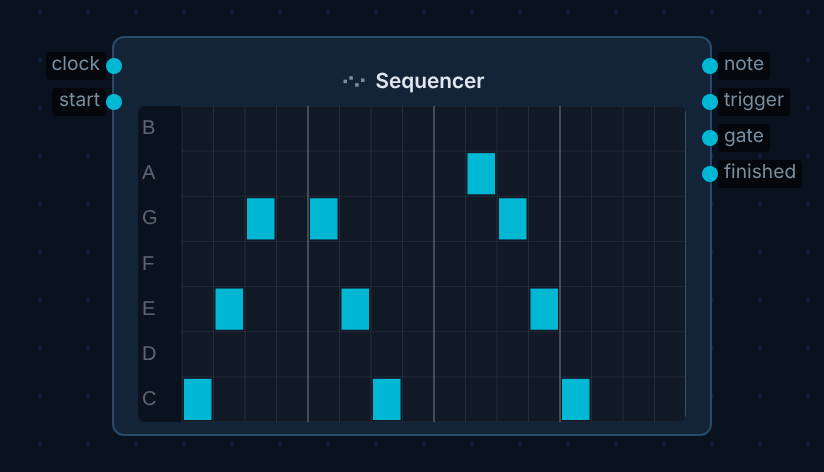

Sequencer

Pitch sequencer. Plays a row of notes from a chosen scale, advancing one step per clock pulse. Supports rests and ties.

Category: Control

Inputs

Name	Type	Description
clock	control	Advances to the next step on each rising edge.
start	control	Rising edge resets to step 0 and starts playback. When unconnected, the sequencer free-runs.

Outputs

Name	Type	Description
note	control	Current step’s pitch (1V/octave).
trigger	control	Pulse on each note step. Suppressed on rests and ties.
gate	control	High while a note is held; low on rests. Held across ties.
finished	control	Pulse when the sequence completes its last step.

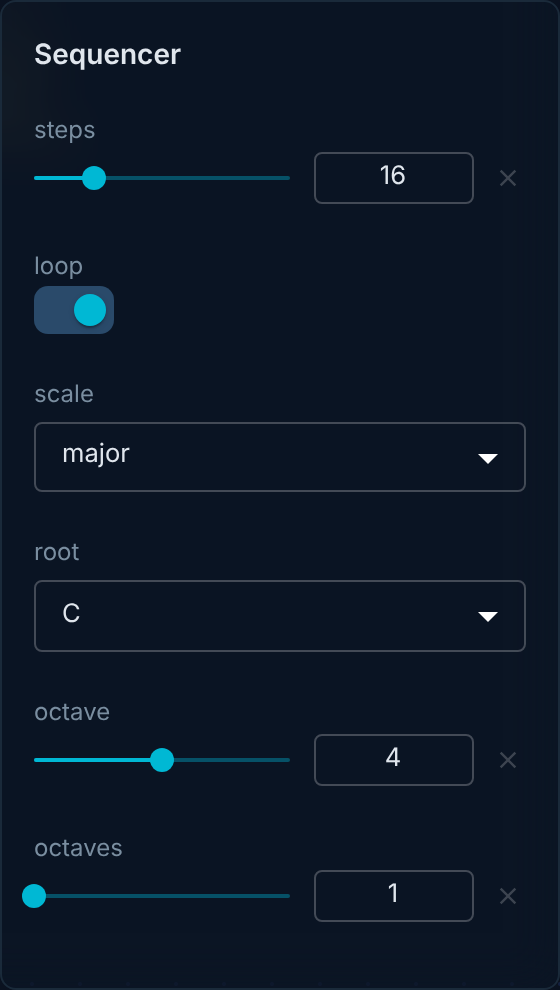

Parameters

Name	Type	Default	Range	Unit	Description
steps	number	16	1–64	—	Number of active steps.
loop	boolean	true	true, false	—	When true, the sequence wraps; when false, it stops after `finished`.
scale	enum	major	chromatic, major, minor, pentatonic	—	Scale used to map note indices to pitches.
root	enum	C	C, C#, D, D#, E, F, F#, G, G#, A, A#, B	—	Root note of the scale.
octave	number	4	0–8	—	Octave of the lowest note in the grid.
octaves	number	1	1–4	—	How many octaves the note grid spans.
sequence	string	-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1	—	—	Comma-separated step values: integer = scale-degree index, `-1` = rest, `>` = tie to the previous note.
