Drum Pattern

Multi-track trigger sequencer. Each track is a row of on/off steps that emit independent trigger pulses.

Category: Control

Dynamic shape. Ports and per-channel parameters scale with the channel-count parameter; the default 2-channel shape is shown below.

Inputs

Name	Type	Description
clock	control	Advances to the next step on each rising edge.
start	control	Rising edge resets to step 0 and starts playback. When unconnected, the pattern free-runs.

Outputs

Name	Type	Description
track1	control	Track 1’s trigger pulses (one per active step on this row).
track2	control	Track 2’s trigger pulses (one per active step on this row).
track3	control	Track 3’s trigger pulses (one per active step on this row).
track4	control	Track 4’s trigger pulses (one per active step on this row).

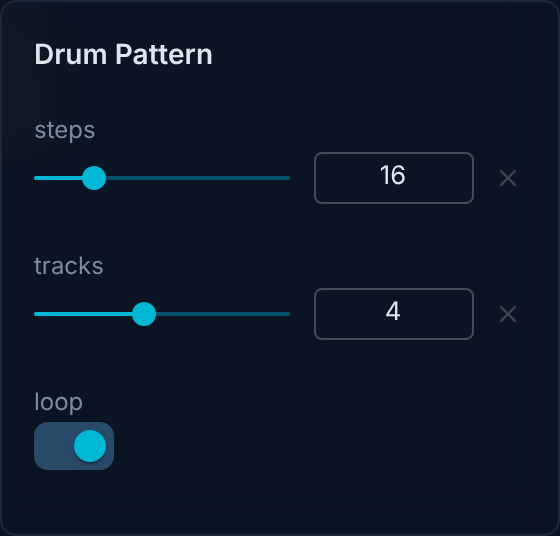

Parameters

Name	Type	Default	Range	Unit	Description
steps	number	16	1–64	—	Number of active steps per track.
tracks	number	4	1–8	—	Number of independent track outputs. Changing this rebuilds the patch.
loop	boolean	true	true, false	—	When true, the pattern wraps; when false, it stops after the last step.
pattern	string	—	—	—	One row per track separated by `|`; each row is a string of `0`/`1` characters per step.
